TDA7265 Stereo Amplifier Board – Dual Channel Audio Amplifier Circuit

TDA7265 Stereo Amplifier Board

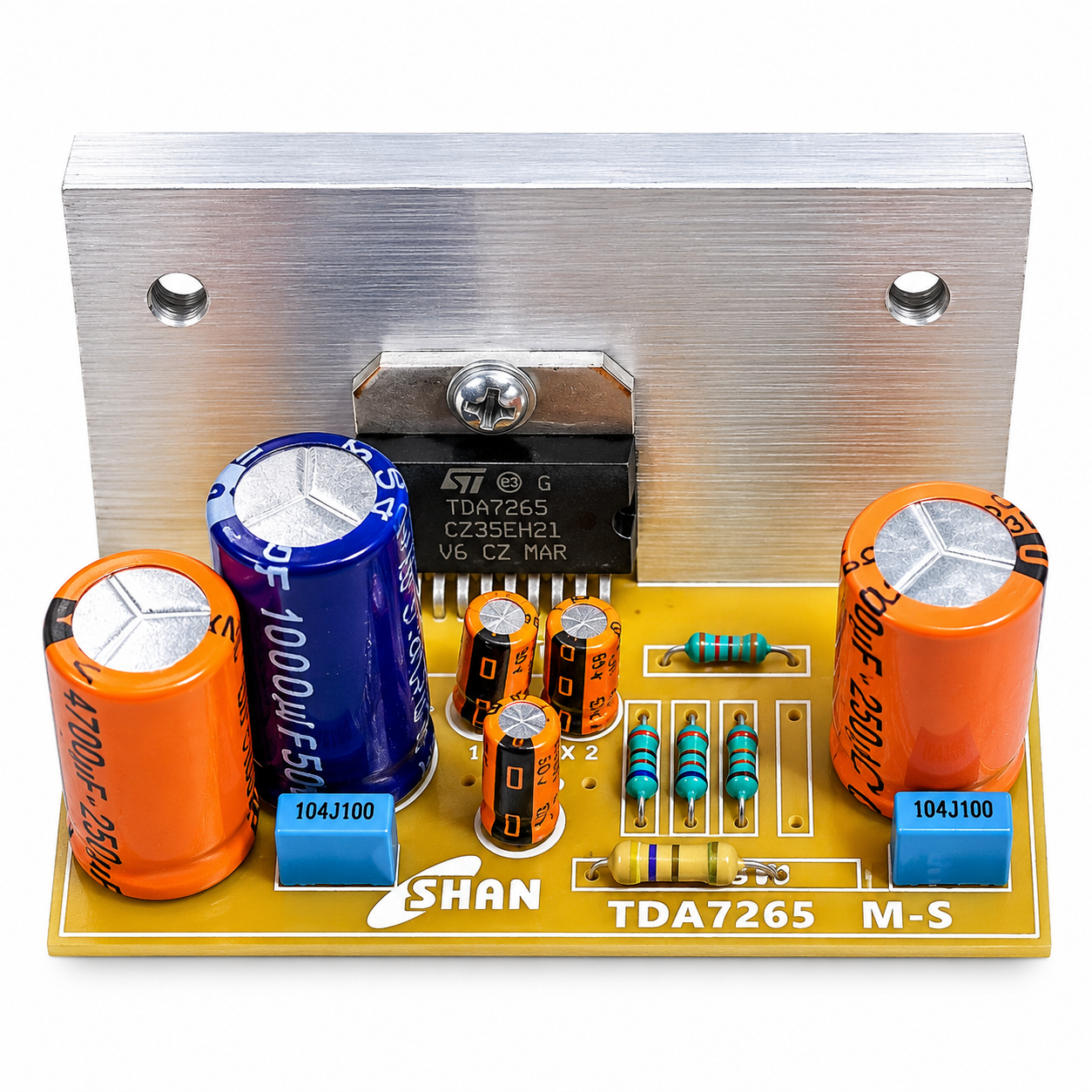

The TDA7265 Stereo Amplifier Board is designed for DIY audio enthusiasts who want to build or repair a stereo amplifier system. Powered by the TDA7265 audio amplifier IC, this board provides two-channel amplification for left and right speaker outputs.

The board features a compact PCB layout with essential electronic components and a heatsink mounting arrangement to help dissipate heat during operation. It is suitable for home audio systems, DIY speaker projects, and custom stereo amplifier builds.

Key Features

• TDA7265 audio amplifier IC
• Dual-channel stereo amplifier circuit
• Left and right speaker output support
• Heatsink for improved heat dissipation
• Suitable for DIY audio amplifier projects
• Useful for home audio systems and amplifier repairs

Applications

• Home stereo amplifier systems
• DIY speaker amplifier projects
• Audio amplifier repair and replacement
• Custom audio system assembly

Technical Information

• Amplifier IC: TDA7265
• Channel Type: Stereo, 2-channel
• Output: Left and right speaker channels
• Power Supply: Use a compatible supply according to the TDA7265 circuit design
• Cooling: Heatsink required for suitable thermal management

Installation Notes

Use the recommended power supply voltage and speaker impedance specified for the circuit. Ensure correct polarity and proper wiring before switching on the amplifier. Adequate heatsinking and ventilation are recommended.

Note: Actual output power depends on the supply voltage, speaker impedance, heatsink, and circuit implementation.
